Modern tools for web visualization

March 27th, 10am-12pm

Earlier in this Winter Series we covered building interactive web apps with Plotly Dash. Some of its features:

On May-19, we’ll also offer a webinar demoing building the same set of Python dashboards using Python Shiny and Plotly Dash, each offering different approaches to creating reactive interfaces and interactive visualizations.

In today’s workshop, we’ll focus on 3D web visualization using tools from the VTK ecosystem. That is, we’ll take workflows you’re familiar within ParaView and bring them online as interactive visualizations.

Evolution of VTK

  • VTK (Visualization Toolkit)
    • C++ library, initial release in 1993
    • handles I/O, data processing, rendering
    • interpreted interface layer in Python (started in late 1990s, full API coverage by ~2018)
    • runs server-side only (C++ or Python)
  • Vtk.js is a rewrite of (most of) VTK in JavaScript
    • runs client-side only (in the browser), started in 2016
    • rendering limited by the browser
    • somewhat limited processing and I/O
  • Previous (pre-2021) state-of-the-art web visualization
    • standalone vtk.js applications, e.g. ParaView Glance or ParaView Divvy
    • vtk.js applications interacting with a remote ParaView server using ParaViewWeb framework, e.g.
      • ParaView Visualizer (recreating full ParaView functionality on the web)
      • ParaView Lite (lighter workflows than ParaView Visualizer)
  • In all these cases you create web apps in JavaScript, or use existing apps

Quick glance at … Glance

Of all pre-2021 applications, ParaView Glance is the one I still recommend – here is a live demo.

You can import any ParaView scene (a collection of pre-computed polygons) into ParaView Glance for live online visualization and to easily share your 3D content with peers and the broader public.

Glance is a standalone web application (written in JavaScript and vtk.js) that runs without a server, enabling visualization of small to medium-sized data. Server support is planned for future releases.

  1. Create a visualization with several layers, make all layers visible in the pipeline
  2. File | Export Scene… as VTKJS to your computer
  3. Open https://kitware.github.io/paraview-glance/app
  4. Drag the newly saved file to the dropzone on the website
  5. Interact with individual layers in 3D: rotate and zoom, change visibility, representation, variable, colourmap, opacity

To automatically load a visualisation into Glance, use the query syntax GLANCEAPPURL?name=FILENAME&url=FILEURL to pass name and url of your publicly accessible dataset to the web server – study the live demo link above as an example. To include into websites, you can use JavaScript to parse long URL strings (see an example in our regular ParaView slides).

Trame intro

  • Open-source server-connected web dashboard platform with a Python interface into which you can plug different components:
    • some mix of VTK and vtk.js (via an adaptor) scripts
    • ParaView scripts
    • Matplotlib scripts
    • Plotly scripts
    • Vega-Altair scripts
    • etc
  • Created by Kitware: v1 in September 2021, now on v3.10
  • Pronounced [trʌm]
  • Built on top of VTK and ParaView
  • All Python scripts run on the server backend
  • Interactive graphical widgets rendered either on the server (and displayed in your browser) or directly in your browser

Architecture

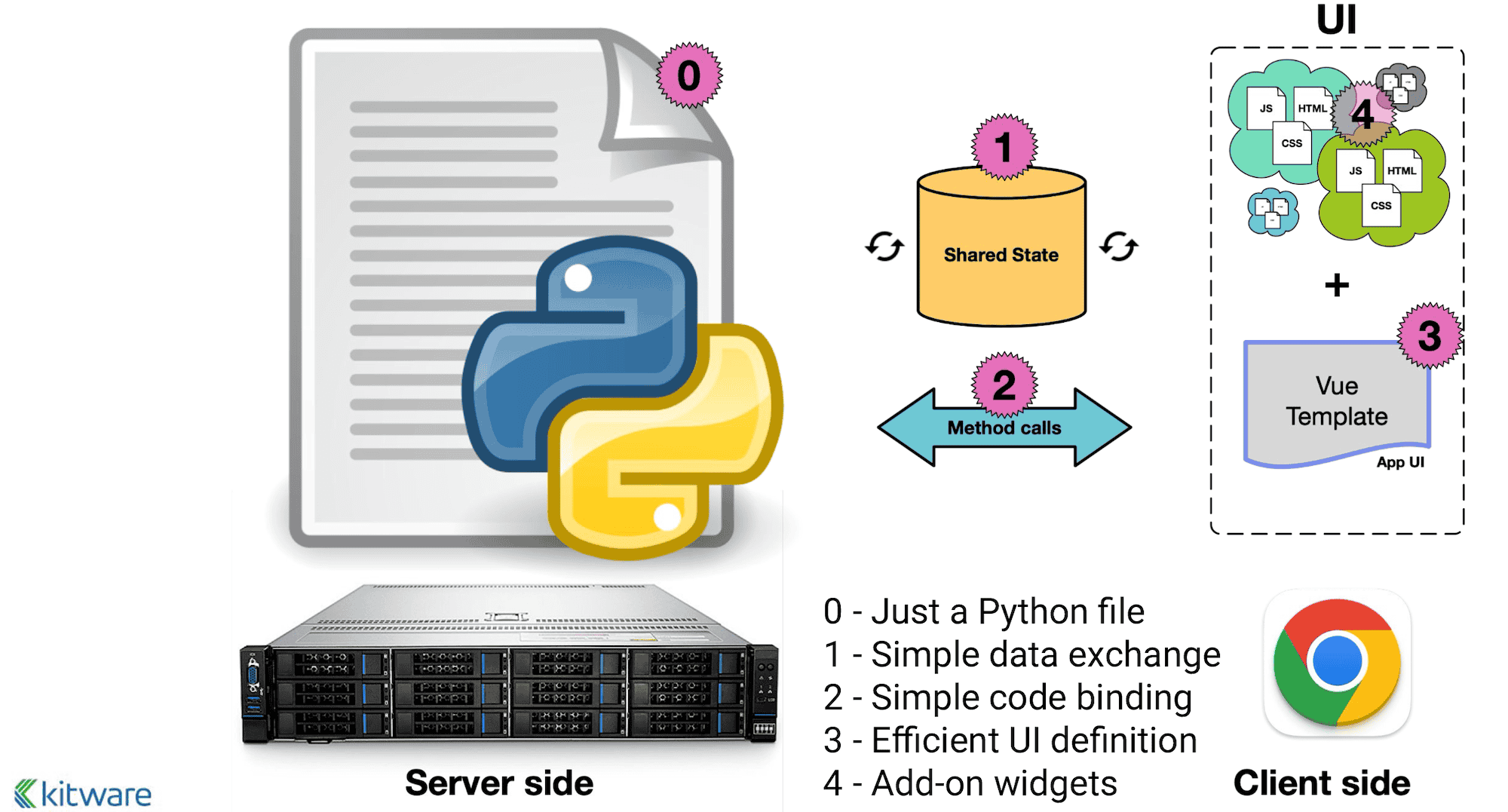

Figure by Kitware
  • Single backend Python code on the server (cloud, HPC, Jupyter, desktop app)
  • UI (layout/buttons/…) via Vuetify (Material Design component framework) toolkit on top of Vue.js, nicely abstracted
  • Plots supplied by widgets
  • State variables automatically synced between the backend and the frontend (UI)
  • Controller actions can be called from (1) Python, (2) frontend, or (3) state changes

Installation

On your own computer, you can use your favourite package manager, e.g. uv:

uv venv ~/env-trame --python 3.12   # create a new virtual env
source ~/env-trame/bin/activate
uv pip install trame                # trame core
uv pip install trame-vuetify        # UI widgets
uv pip install trame-components     # other components to work with VTK/ParaView scenes
uv pip install trame-vtk            # VTK widgets for trame
uv pip install vtk                  # if running plain VTK code
uv pip install trame-matplotlib     # matplotlib widgets for trame
uv pip install trame-plotly         # plotly widgets for trame
...
deactivate

If you want to run trame inside Jupyter notebooks, also add:

uv pip install setuptools jupyterlab

On the training cluster, I already installed it via:

mkdir -p /project/def-sponsor00/shared
cd /project/def-sponsor00/shared
module load python/3.12.4 vtk/9.4.2
python -m venv env-trame
source env-trame/bin/activate
pip install --no-index --upgrade pip
pip install --no-index msgpack requests
python -m pip install trame trame-vuetify trame-vtk
...
deactivate
chmod og+X,og-r /project/def-sponsor00/shared
chmod -R og+rX /project/def-sponsor00/shared/env-trame

so that you can load it with:

source /project/def-sponsor00/shared/env-trame/bin/activate

Get the tutorial codes

--- laptop ---
git clone https://github.com/Kitware/trame-tutorial.git
cd trame-tutorial
git branch -m master main

In this workshop I’ll be showing heavily modified examples from this tutorial: simplified coding style, some additional examples, but on your end I suggest you begin with cloning the official tutorial examples.

I also created an upstream repository on the training cluster:

--- cass ---
mkdir -p /project/def-sponsor00/shared/trame-tutorial
cd /project/def-sponsor00/shared/trame-tutorial
git config --global init.defaultBranch main
git init
git config receive.denyCurrentBranch updateInstead

pushed my local repository to it:

--- laptop ---
git remote add cass cass:/project/def-sponsor00/shared/trame-tutorial
git add ...
git commit -m ...
git push cass main

and made it readable to all users:

--- cass --
chmod -R og+rX /project/def-sponsor00/shared/trame-tutorial

so you can copy my exact examples from there.

Layouts

Study the code 00_setup/app.py – it creates a single-page layout without a drawer.

source ~/env-trame/bin/activate
cd trame-tutorial

python 00_setup/app.py               # use default port 8080
python 00_setup/app.py --port 1234   # use specific port
python 00_setup/app.py --server      # prevent your browser from opening automatically

Now change SinglePageLayout to SinglePageWithDrawerLayout.

Running on a remote server

--- cass --
source /project/def-sponsor00/shared/env-trame/bin/activate
git clone /project/def-sponsor00/shared/trame-tutorial
cd trame-tutorial
python 00_setup/app.py --host 127.0.0.1 --port 8080 --server

--- laptop ---
ssh cass -L 8080:localhost:8080

--- laptop ---
open http://localhost:8080

Binding the server to 127.0.0.1 on a publicly accessible host is very important for security: the host ignores any incoming traffic on that port from the outside world, but you can still connect via an ssh tunnel.

On a compute node behind a firewall on a cluster, you will have to set up the tunnel as ssh cass -L 8080:<nodename>:8080.

Matplotlib

Add a simple Matplotlib widget

As you know, the original Matplotlib produces static plots. We can make them interactive with trame. Let’s start with a basic plot – study and run the code 06_matplotlib/line1-static.py

Add a state variable

  • state = server.state is where you store data that can change dynamically and is automatically synced between the backend (Python on the server) and the frontend (browser UI)
  • You can watch for changes in state on the backend using the @state.change decorator that will run a callback function
    • callback functions are defined with @state.change
  • Study and run the code 06_matplotlib/line2-slider.py
v3.VSlider(v_model=("wavenumber", defaultWave), min=0.1, max=5, step=0.1,
           hide_details=True, density="compact", style="max-width: 300px;")
v3.VBtn("Reset", click=lambda: setattr(state, "wavenumber", defaultWave))
@state.change("wavenumber")
def update_plot(wavenumber, **kwargs):   # callback function
    line.set_ydata(np.sin(wavenumber*x))
    fig.canvas.draw_idle()   # redraw locally in matplotlib
    plot.update()            # notify Trame to refresh image in browser

Interactive slice through a 3D function

Here we visualize an interactive slice through a 3D sine envelope function defined inside a unit cube \(x_i\in[0,1]\):

\[ f(x_1,x_2,x_3) = \sum_{i=1}^2\left[\frac{\sin^2\left(\sqrt{\xi_i^2+\xi_{i+1}^2}\right)-0.5} {\left[0.001(\xi_i^2+\xi_{i+1}^2)+1\right]^2}+0.5\right]\text{, where }\xi_i\equiv30(x_i-0.5), \]

discretized on a \(100^3\) Cartesian grid and stored in sineEnvelope.nc

  • Code in 06_matplotlib/slice2-streamlined.py
  • Define slice state variable
  • Redraw the image with:
@state.change("slice")       # watch for slice changes
def update_plot(slice, **kwargs):
    ax.imshow(data[:, :, slice], origin="lower")
    fig.canvas.draw_idle()   # redraw locally in matplotlib
    plot.update()            # notify Trame to refresh image in browser

Plotly

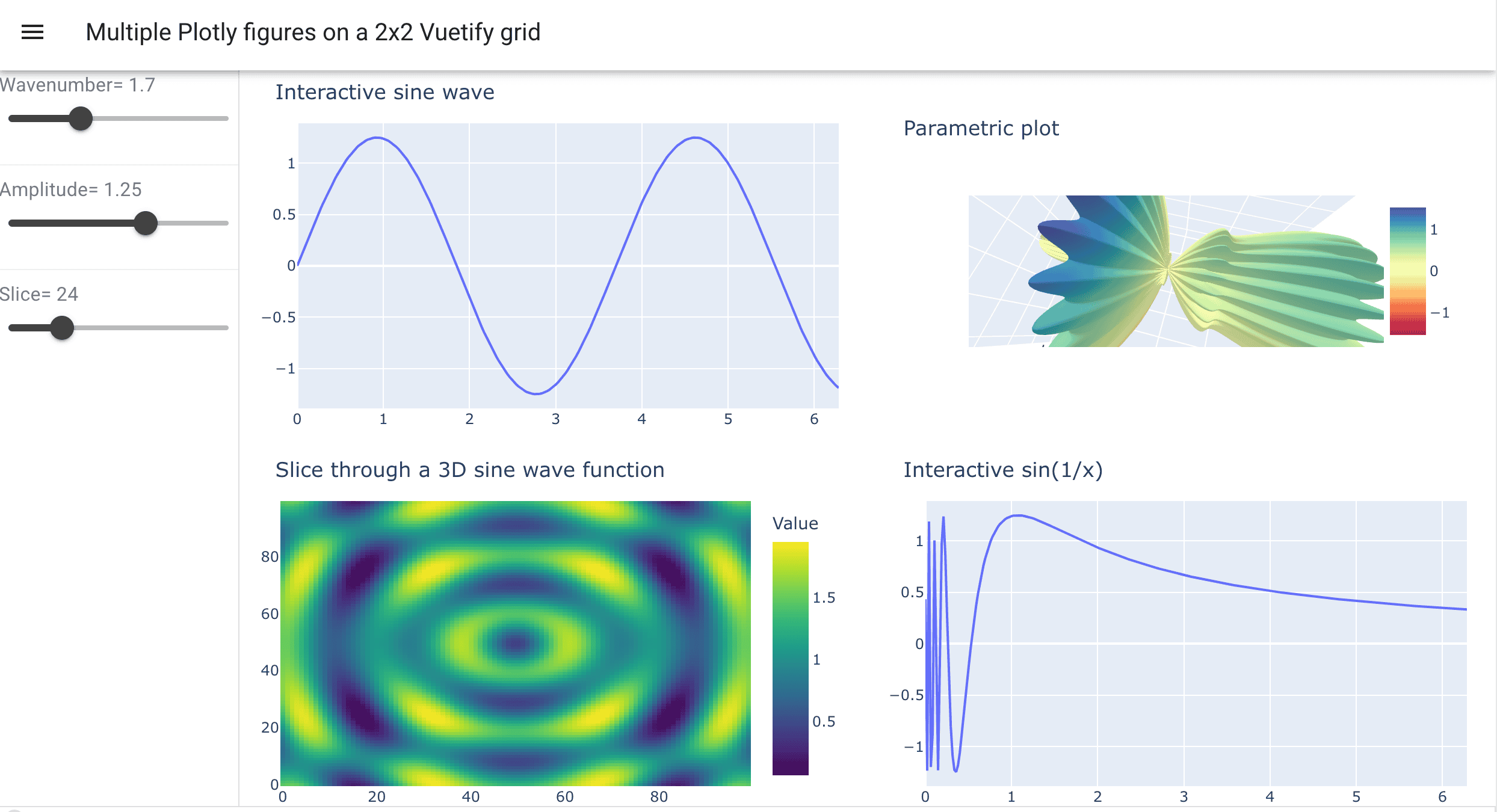

Example of a more complex 2x2 layout with Plotly widgets

We can create Plotly dashboards with Dash, but here is an example of doing the same in trame – see the code in 07_plotly/4-dashboard2x2.py.

  • 4 separate Plotly figures, including an interactive 3D plot
  • 2 callback functions
  • 2 familiar sliders (controlling fig1 and fig2)
  • one additional slider for a 3D slice position in fig3

Figure by Kitware

VTK + trame

VTK can be integrated into trame with various levels of granularity:

  1. local vtk.js (client-side only)
  2. hybrid: remote VTK for processing (creating meshes) and local vtk.js for rendering
  3. remote VTK for processing and rendering on the server, pixels sent to the client

Client-side rendering with vtk.js only

  • Code in 01_no_vtk/client.py
  • No traditional Python VTK code in this example
  • Import a lightweight adaptor to present VTK objects to the UI:
from trame.widgets import vtk
  • vtk.VtkAlgorithm handles the state variable as an argument (no explicit callback function)
  • Run the code – all rendering is done on the client
  • Add a second VTK object:
with vtk.VtkGeometryRepresentation():
    vtk.VtkAlgorithm(vtk_class="vtkSphereSource")

VTK rendering

  • Python interface to VTK provides the full functionality of the C++ API
    • handles I/O, data processing, rendering
  • Usual steps to render an object in VTK
    • should be familiar to anyone with some VTK experience in C++ or Python #text(size: 9pt)[
    1. Create a renderer, then a render window, and link them together by adding the renderer to the render window (a render window can hold multiple renderers)
    2. Create an interactor (which provides a platform-independent interaction mechanism for mouse/key events), connect it to the render window, and ensure it tracks the camera
    3. Create a source, e.g. a cone
    4. Create a mapper (a graphical representation) and set the cone source as its input
    5. Create an actor and assign the mapper to it
    6. Add the actor to the renderer (a renderer can hold multiple actors), then reset the camera to frame the scene ]
  • Check the code in 01_vtk/coneCylinder.py
    • two objects, each with its own mapper and actor
    • do either local (vtk.js on the client from received geometry) or remote (on the server and send images to the client) rendering

Render a VTK dataset from a file

  • Code in 01_vtk/sine1-static.py
    • loads sineEnvelope.vti file on the server
    • applies an Outline Filter, creates a outline mapper, then an outline actor
    • applies a Contour Filter at \(rho=0.15\), creates a contour mapper, then a contour actor
    • adds both actors to the renderer
  • Local rendering is noticeably faster even for this small dataset
    • local rendering: working with geometry on the client
    • remote rendering: receiving pixelated images
  • Add a contour slider and a callback function – see 01_vtk/sine2-slider.py
@state.change("contourValue")
def update_contour(contourValue, **kwargs):
    contour.SetValue(0, float(contourValue))
    view.update()

Controller actions

  • Functions that can be called from Python or from the frontend UI (e.g. a button click) or from state changes
    • defined with @ctrl.add decorator
  • Example in 03_html/click.py
from trame.app import get_server
from trame.ui.vuetify3 import SinglePageLayout
from trame.widgets import vuetify3 as v3

server = get_server(client_type = "vue3")
ctrl = server.controller

@ctrl.add("printout")
def reset_plot():   # this function gets triggered when you click Print
    print("Another line!")

# ctrl.printout()   # syntax to call it in the main Python code

with SinglePageLayout(server) as layout:   # create a UI
    with layout.content:
        v3.VBtn("Print", click=ctrl.printout)

server.start()

Complex visualization app

Code 04_application/coneMeshContour.py adapted from the tutorial:

  • reads an Unstructured Grid file on the server

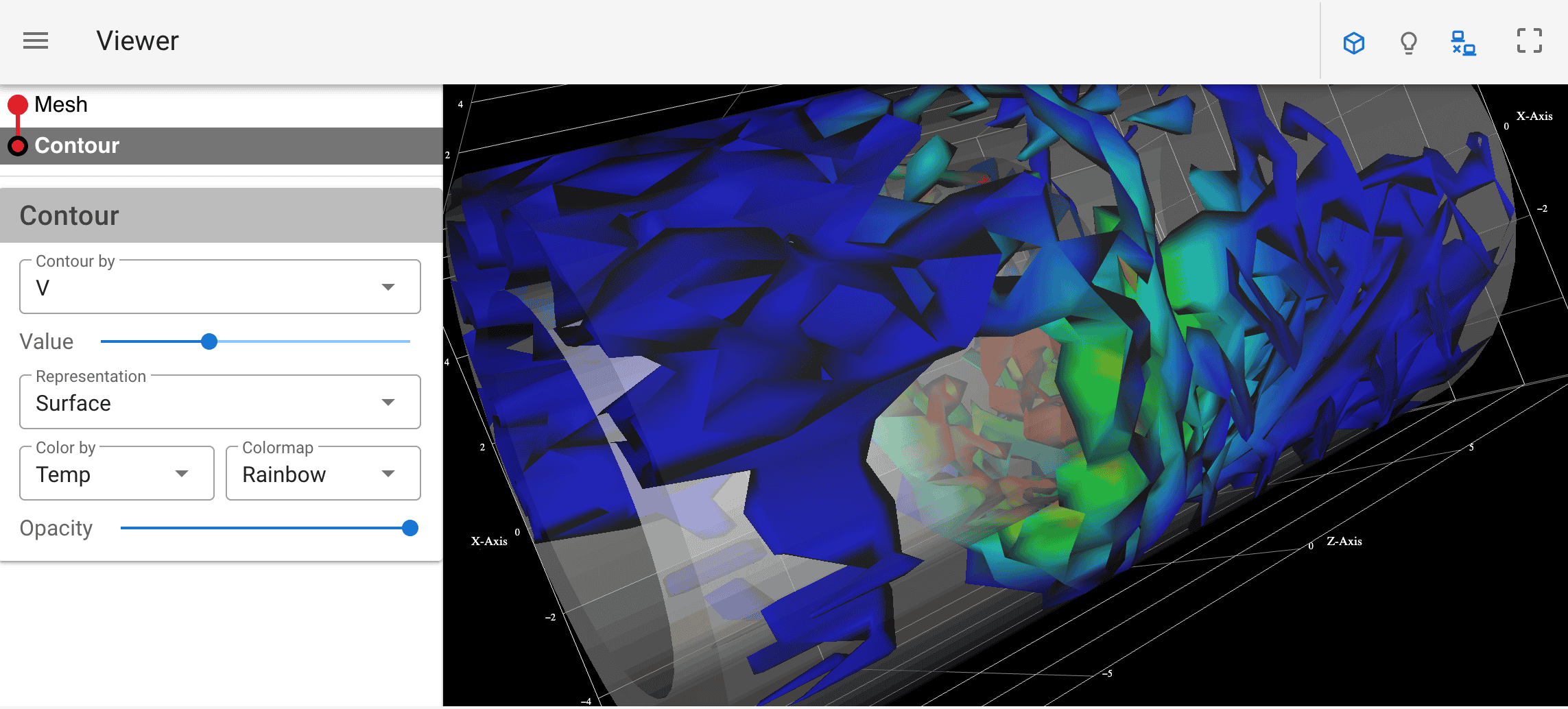

  • creates an entire visualization pipeline in the drawer
  • packs pipeline elements into collapsible Vuetify UI cards
  • good usage example for vuetify.VCol() and vuetify.VRow()
  • the original Python code is 500+ lines

Figure by Kitware

ParaView

Code 05_paraview/cone.py adapted from the tutorial. To run it, use ParaView’s Python, pointing to the correct venv with --venv instead of source:

cd ~/tmp/trame-tutorial
pvpython 05_paraview/cone.py --venv ~/env-trame
  • paraview.VtkRemoteView uses ParaView’s Python VTK pipeline underneath to render the image on the server, delivers this image to the browser, works right out of the box
  • paraview.VtkLocalView should deliver the cone’s geometry to the browser for rendering via vtk.js, but apparently it does not, and the view appears empty … not sure why

ParaView Python workflows are much more compact than VTK Python workflows. To learn more about ParaView Python scripting, use the Trace Tool in ParaView’s GUI.

ParaView state loader via the command line

Code 05_paraview/stateLoader.py adapted from the tutorial.

Open local ParaView GUI and:

  1. load ~/training/paraviewWorkshop/data/sineEnvelope.nc
  2. create a interactive visualization with several layers
  3. save the state as 05_paraview/demo.pvsm

Run the trame script:

pvpython 05_paraview/stateLoaderFromFlag.py --venv ~/env-trame --data 05_paraview/demo.pvsm

Temporarily remove the data file sineEnvelope.nc from its location to verify that demo.pvsm uses live data.

ParaView state loader via upload

Code 05_paraview/uploadState.py. Run it this way:

pvpython 05_paraview/uploadState.py --venv ~/env-trame
  • It’ll prompt you to upload the state (.pvsm) file – use 05_paraview/demo.pvsm
  • We save the content of this uploaded file bytes = file["content"] into a remote file uploaded_state.pvsm on the server
  • It’ll read the data file sineEnvelope.nc on the server side
  • For a flashier demo, expand this script to upload a data file as well

Multi-user setup

  • For development purposes, a simple trame.app serves a single user
  • To scale to multiple users in a production environment, you need a setup that isolates user sessions while allowing a single server process to handle all connections
    • apparently, several ways to do this using third-party web development tools
    • since I’m not a web developer, I have not explored this in detail

Visualizer as a trame.app

A decade ago, the original ParaViewWeb-based Visualizer (a JavaScript frontend communicating with a remote ParaView server) implemented most of ParaView’s functionality in the browser.

Kitware is working on a Visualizer implementation in trame:

  • need to request access (work in progress in a private repo … I have not tried it)
  • shows the power of trame!
  • few other complete trame apps on the same page

Summary

  • Enables any Python developer to create stunning interactive web visualizations using their favourite data-processing engine (numpy, pandas, xarray, pytables, …)
  • Provides integration with popular Python analysis/visualization libraries such as VTK, ParaView, Matplotlib, Plotly, Vega-Altair, etc.
  • A trame app is a single Python application
    • can run in the cloud, on HPC, within Jupyter, or bundled locally like any desktop app
    • displays everywhere via the web (phone, tablet, laptop)
  • Utilizes a dedicated stateful server process per client
  • Uses Vuetify UI toolkit, a no-design-skills-required open-source UI library for JavaScript / TypeScript, but expresses the UI design in plain Python code
  • Excellent documentation
